Key takeaways

• The 13B is a twin-rotor Wankel engine with roughly 1.3L of displacement per rotor pair.
• The 13B REW uses sequential twin turbos and made around 255 to 280 hp depending on the model year.
• The Renesis version in the RX8 came in 4-port and 6-port form, with the 6-port making noticeably more power.
• Apex seal wear is the most common failure point, and a compression test tells you a lot before you buy.
• Oil use is normal on a rotary. It is not automatically a red flag.

If you're looking into a 13B engine, you've probably already heard mixed opinions about it. Some people call it a maintenance nightmare. Others call it one of the most fun engines Mazda ever built. Both are a little true. Let’s break down what the 13B actually is, how its variants differ, and what you should check before buying one.

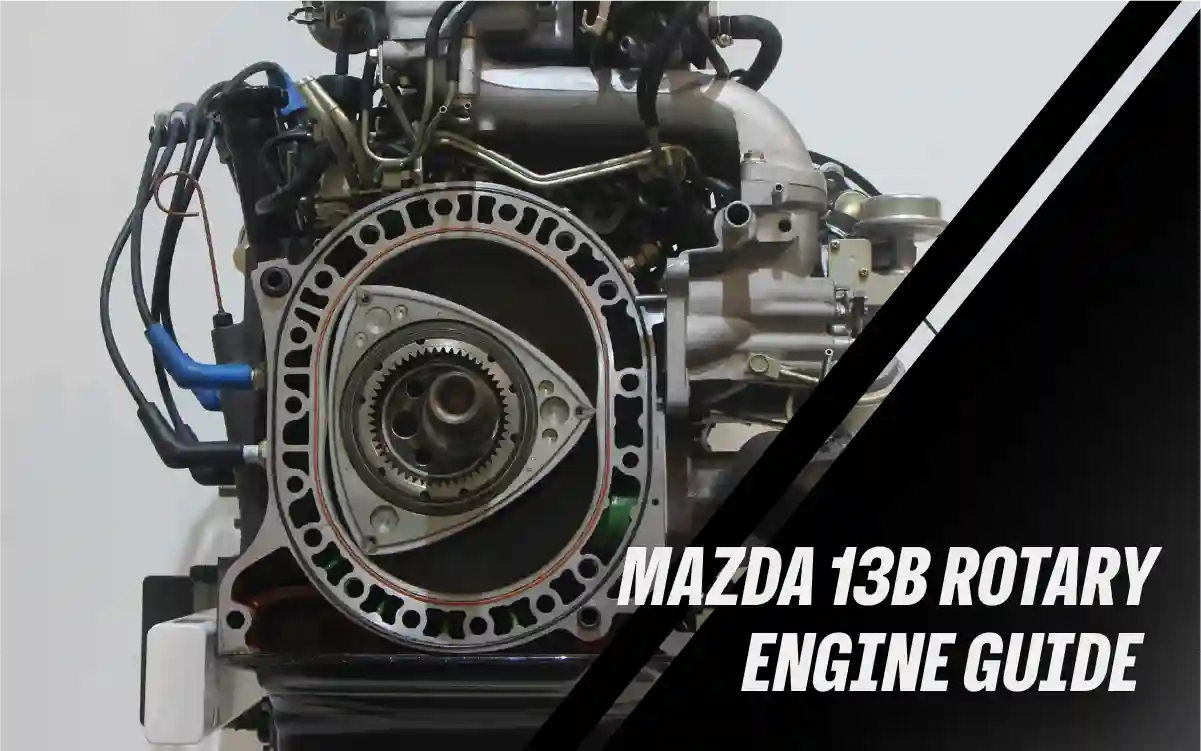

What is the Mazda 13B?

The 13B is Mazda's twin-rotor version of the Wankel engine. Instead of pistons moving up and down, it uses two triangular rotors spinning inside oval housings. This design is smaller and lighter than a comparable piston engine, and it revs high with very little vibration.

Mazda built the 13B for decades, and it showed up in everything from the RX7 to the Cosmo. It's still one of the most talked about engines in the JDM world, right alongside the 2JZ and RB26.

How a Wankel rotary works

A rotor moves through four phases inside its housing: intake, compression, combustion, and exhaust. All four happen in the space the rotor sweeps through, so there's no separate valve train doing the work. This is part of why rotaries are compact and why they rev so freely. The tradeoff is that sealing the rotor against the housing is harder than sealing a piston in a cylinder, and that's where most reliability questions start.

How much cc is a 13B?

Each rotor chamber displaces 654cc. With two rotors, that puts the 13B at 1308cc total, which is why people round it to 1.3L. Rotary displacement doesn't translate directly to piston engine displacement, though, since a rotor produces more power strokes per rotation than a piston does. In practice, the 13B behaves closer to a 2.6L piston engine in terms of output.

13B variants explained

Mazda changed the 13B a fair bit over its production run. The three versions buyers ask about most are the REW, the RE, and the Renesis.

13B-REW twin turbo

The REW is the sequential twin-turbo version found in the FD RX7. A small turbo spools first for low RPM response, then a larger turbo takes over at higher RPM. Later REW units made around 255 to 280 hp depending on the market and model year. This is the version most tuners chase, and it's also the one with the most documented history around apex seal wear under boost.

13B-RE

The RE is a single turbo variant, generally less aggressive than the REW in tuning and port work. It sits in between the naturally aspirated versions and the twin turbo REW, and it's a reasonable pick if you want turbo power without the added complexity of a sequential setup.

If you're comparing engines for a build, it helps to browse JDM Mazda engines side by side rather than going off spec sheets alone, since condition varies a lot between units.

Renesis 4-port vs 6-port

The Renesis is the naturally aspirated 13B used in the RX8. It came in two port configurations. The 6-port version, paired with the manual transmission, made around 232 hp. The 4-port version, paired with the automatic, made less power since the automatic couldn't handle the high RPM the engine needed to make peak output. If you're shopping for a Renesis, check which port configuration you're actually getting, since sellers don't always list it clearly.

What cars have a 13B engine?

Mazda RX-7 FC and FD

The FC3S RX7 used earlier 13B variants, including turbo and naturally aspirated versions. The FD3S moved to the 13B REW with sequential twin turbos, and it's the version most associated with the RX7 name today.

Mazda RX-8

The RX8 used the Renesis 13B exclusively, in the 4-port and 6-port configurations mentioned above.

Mazda Cosmo

The Cosmo used earlier 13B variants as well, including some triple rotor versions later in its run, though those are a separate engine family from the standard twin rotor 13B.

How much horsepower does a 13B have?

It depends entirely on the variant. Early naturally aspirated versions made around 100 to 160 hp. The REW topped out around 280 hp from the factory. The Renesis landed around 197 to 232 hp depending on port configuration and transmission. Built and tuned versions can go well past these numbers, but that's a different conversation from stock output.

Are 13B rotary engines reliable?

This is the question everyone actually wants answered, so let's be direct about it. A well-maintained 13B can run for a long time. A neglected one won't. The engine is sensitive to overheating, low oil, and short trips that don't let it fully warm up. It's not fragile in the way people sometimes describe it, but it does punish poor maintenance faster than most piston engines do.

If you're weighing a rotary against other JDM options, it's worth reading through where the rotary sits on reliability compared to engines like the 2JZ or RB26, since the answer isn't the same for every use case.

Apex seals: what actually fails

The apex seals ride against the rotor housing and take the brunt of combustion pressure. Over time, and especially under heat cycling or detonation, they wear down. Worn seals show up as low compression and, eventually, rough idle or a loss of power. This is the single most common rotary failure, and it's also the one a pre-purchase compression test catches early.

Flooding and cold starts

Rotaries can flood on cold starts, especially after sitting for a while. This is a known quirk, not usually a sign of a bigger problem. If a seller says their 13B needs a specific cold start routine, that's fairly normal and not automatically a warning sign.

Oil consumption is normal

Rotary engines burn a small amount of oil by design, since oil helps lubricate the apex seals against the housing. Some consumption is expected. What's not normal is a sudden increase in consumption or visible smoke, which usually points to worn seals rather than routine use.

How to compression test a rotary

Why it differs from a piston engine

A rotary has three faces per rotor instead of one piston per cylinder, so a compression test reads differently than it would on a piston engine. Each face needs to be checked individually, and the numbers across all faces should stay fairly close together. A big gap between faces on the same rotor usually points to seal wear on that specific face.

What good numbers look like

Healthy rotors generally show compression numbers that are close and consistent across all faces, though exact figures vary by engine condition and testing method. If you want the full walkthrough, we've got a guide on how to check engine compression that covers the process step by step, including what tools you need and how to read the results.

Buying a used 13B

What to check

Before buying, ask for a compression test across all rotor faces, check for any smoke on startup, and ask about oil consumption history. Look at the cooling system too, since overheating is one of the fastest ways to damage a rotary. If the engine has already been swapped once, ask why.

What a running unit costs

Prices vary depending on mileage, condition, and whether it comes with a matching transmission. A compression-tested unit with documented history will generally cost more than one sold as is, but it's usually worth the difference given how much a rebuild can run if the seals are already worn.

Frequently asked questions

What car has a 13B engine?

The RX7 FC and FD, the RX8, and the Cosmo all used versions of the 13B.

How much HP does a 13B have?

Anywhere from about 100 hp on early naturally aspirated versions up to around 280 hp on the factory twin-turbo REW.

Are 13B rotary engines reliable?

Yes, with proper maintenance. Overheating and neglected oil changes cause most of the failures people blame on the design itself.

How much cc is a 13B?

1308cc total, split across two 654cc rotor chambers.

Shop-imported, compression-tested JDM engines

If you're looking for a 13B Renesis engine with a 6-speed or a running RX7 unit, we test compression on every engine before it's listed. Every unit ships with a 90-day warranty, and we can match you with the correct JDM Mazda transmissions for your build. Click here to see current stock, or reach out if you need help figuring out which variant fits your car.
